Waveshare Resistive touch Display for Raspberry Pi - LCD IPS 3.5
Brand: Raspberry Pi
Product Code: AN-09101
Availability: 3-5 business days
Planned delivery date after ordering: 2023-09-29
Product Code: AN-09101
Availability: 3-5 business days
Planned delivery date after ordering: 2023-09-29
52.40€
Ex Tax: 43.31€
Ex Tax: 43.31€

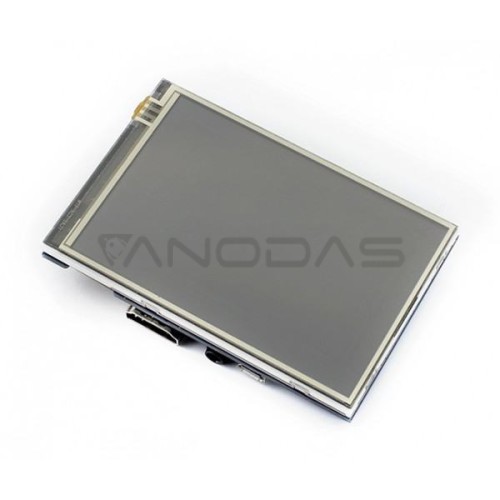

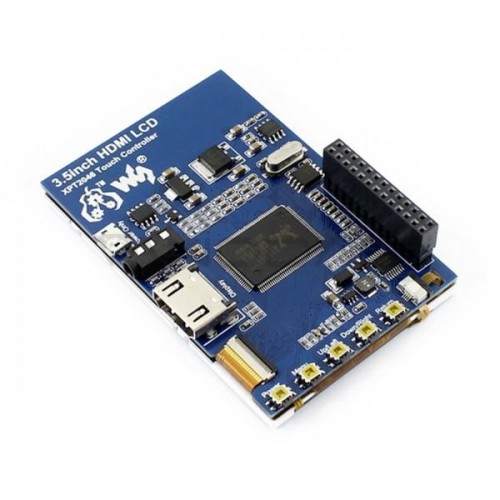

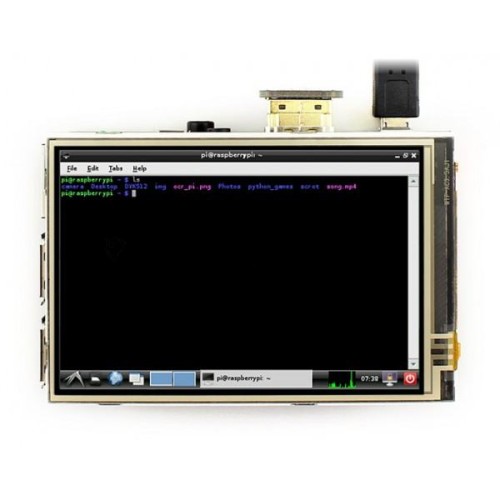

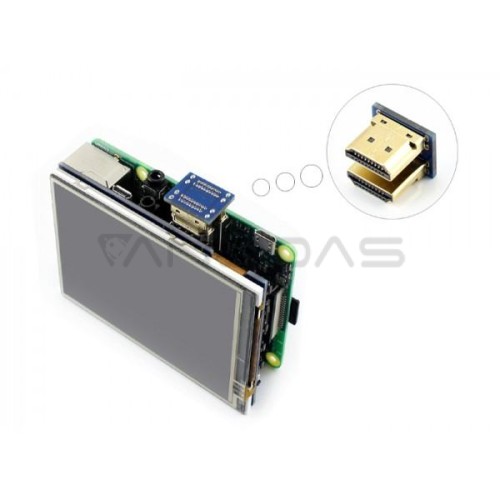

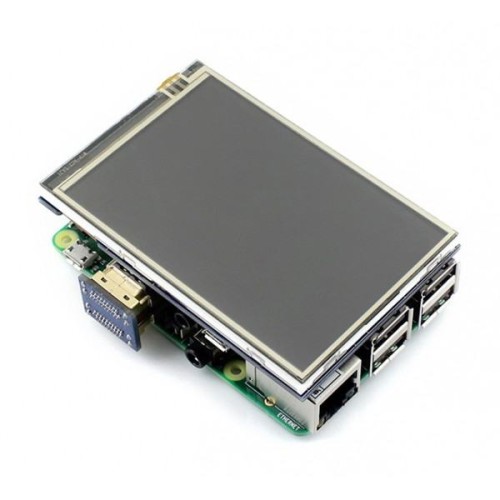

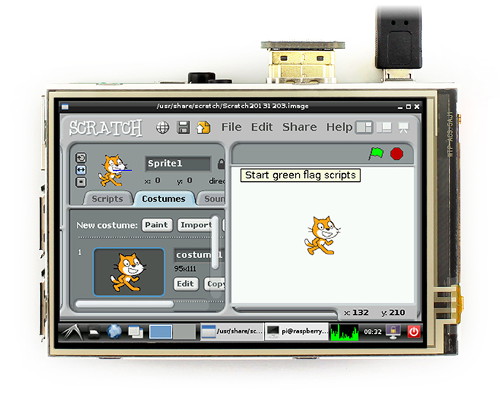

Resistive touch control 3.5" display for the Raspberry Pi with a resolution of 320 x 480 px. Works with Raspberry Pi version 3B, 2B, B+ and Zero via the HDMI connector and the GPIO pins as a trim for microcomputer.
Specifications
- Type: resistive IPS touchscreen 3,5"
- Resolution: 480 x 320 px
- Interface SPI
- Works with: Raspberry Pi 3/2/+/Zero
- Integrated buttons and OSD menu
- AV connection

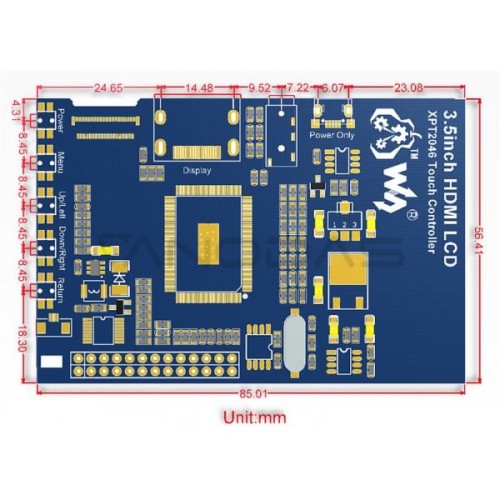

- Size: 85 x 56,5 mm
GPIO interface
| GPIO | Symbol | Description |
|---|---|---|
| 1, 17 | 3,3V | Power supply 3,3 V. |
| 2, 4 | 5V | Power supply 5 V. |
|
3, 5, 7, 8, 10, 11 12,13,15,16, 18, 24 |
NC | Not connected. |
| 6, 9, 14, 20, 25 | GND | Ground. |
| 19 |
TP_SI |
SPI interface touchscreen input. |
| 21 | TP_SO | SPI interface touchscreen output. |
| 22 |
TP_IRQ |
Touchscreen interruption. |
| 23 |
TP_SCK |
Touchscreen time signal SPI. |
| 26 | TP_CS | Touchscreen chip selection. |
Touchscreen drivers installation
