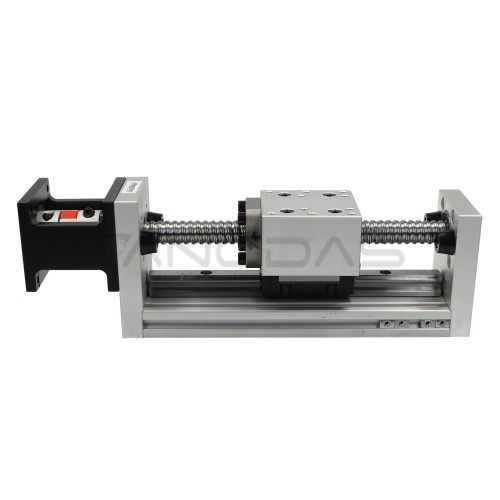

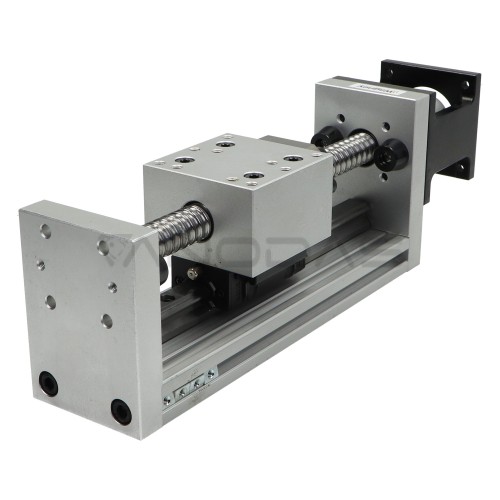

YR-HGWS60K SFU1605 linear table 200 mm stroke

YR-HGWS60K SFU1605 linear table 200 mm stroke – precise and durable element of linear systems

The YR-HGWS60K SFU1605 linear table is an advanced solution that provides precise and repeatable linear motion. It is ideal for applications requiring high positioning accuracy and high speed.

Key Features:

• Motor Mount: Universal motor mount accommodates NEMA 23 motors
• Ball screw: High-quality C7 ball screw with 5mm pitch and 16mm diameter guarantees smooth operation and long service life.
• Accuracy: Positioning accuracy of ±0.03 mm ensures precise task execution.
• Performance: Maximum speed of 250 mm/s and screw speed of up to 3000 rpm enable fast movement of components.
• Load capacity: The solid construction allows for a load of up to 50 kg horizontally and 30 kg vertically.
• Application: Ideal for the Z axis in plasma cutters, PICK&PLACE robots, production lines, saw bumpers and many other applications.

Advantages:

• Versatile: Can be adapted to various applications thanks to the universal engine mount.
• High accuracy: Precise positioning ensures repeatable movements.
• Durability: Solid construction and high-quality components ensure long service life.
• Ease of integration: Complete kit with SFU1605 nut for easy installation.
• Support: Free "Zderzak" software available for easy integration with Samkoon GC touch panels.

Technical specifications:

• Stroke: 200mm
• Positioning accuracy: ±0.03 mm
• Maximum speed: 250 mm/s
• Load capacity: 50 kg (horizontal), 30 kg (vertical)
• Ball screw: C7, 5mm pitch, 16mm diameter
• Nut: SFU1605
