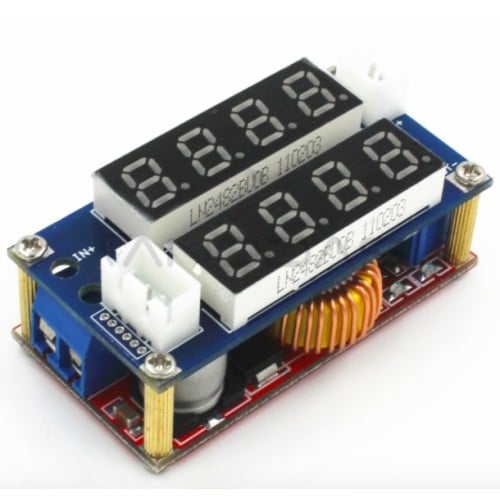

DC/DC įtampos keitiklis iš 5V-30V į 0.8V-29V 5A + Volt/amper (STEP DOWN)

Prekės kodas: AS0121
EAN: 4779044511648
Prieinamumas: Parduotuvėje Vilniuje YRA
Parduotuvėje Kaune YRA
9.40€
Be mokesčių: 7.77€

Kiekis

Item Description:
- 100% Brand new and high quality.
- non-isolated constant current and voltage module
- Rectification: non-synchronous rectification
- Input voltage: 5V-30V
- Output voltage: 0.8V-29V
- Output current: adjustable maximum 5A
- Conversion efficiency: 95% (the highest)
- Switching frequency: 300KHz
- Output ripple: 50mV (max) 20M bandwidth
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%
- Operating Temperature: -40℃to +85℃

- Size: 51 * 26.3 * 14 (L * W * H) (mm)

Voltmeter Ammeter:
- Measurement accuracy: 0.1%
- Refresh rate: about 200ms / times
- Display: 0.28"digital tube
- Current Range 0A-5A
- Voltage range 5V-30V
- Display Color Red
- Storage Temperature:-10℃ to +65℃

- Input impedance: 50 milliohms
