DUE mikrovaldiklis

Specification:

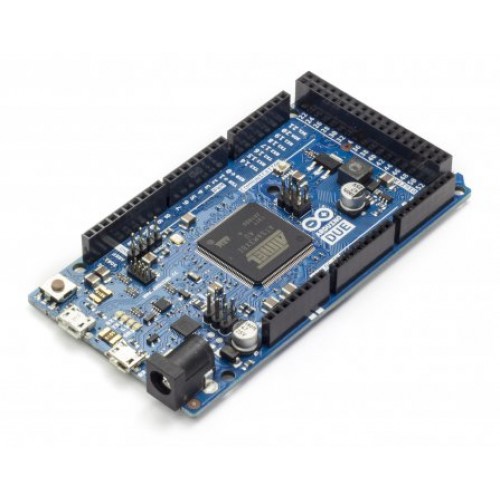

Arduino DUE R3 Board

Condition: New

Microcontroller：AT91SAM3X8E

Operating Voltage：3.3V

Input Voltage (recommended)：7-12V

Input Voltage (limits)：6-16V

Digital I/O Pins ：54 (of which 12 provide PWM output)

Analog Input Pins：12

Analog Outputs Pins：2 (DAC)

Total DC Output Current on all I/O lines ：130 mA

DC Current for 3.3V Pin：800 mA

DC Current for 5V Pin：800 mA

Flash Memory：512 KB all available for the user applications

SRAM：96 KB (two banks: 64KB and 32KB)

Clock Speed：84 MHz

Summary:

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E CPU, which is the first one based on 32-bit ARM core arduino.
The Arduino Due has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB-OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.


Color: show as pictures
PLS NOTE that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!

Note: This is not the same as other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.
