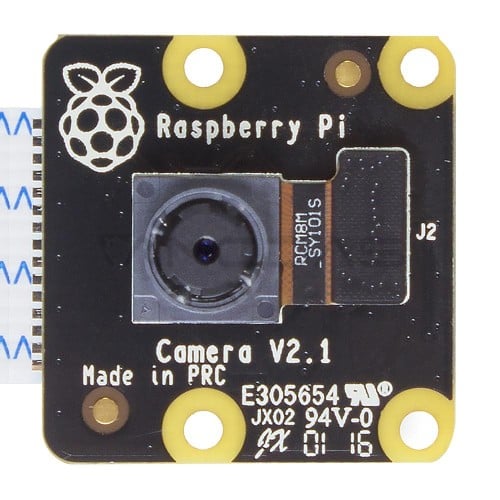

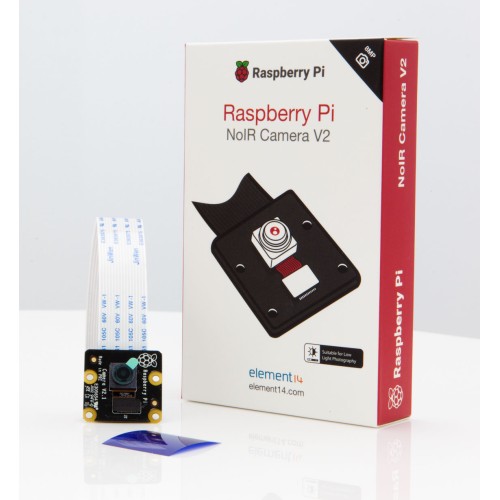

Raspberry pi NoIR Camera V2 8MP
Product Code: AN-06128
Availability: 4-6 business days
Planned delivery date after ordering: 2024-09-06
Ex Tax: 25.37€
The upgraded Raspberry Pi high definition (HD) Camera Module v2 is the new official camera board released by the Raspberry Pi Foundation which connects to any Raspberry Pi or Compute Module. The Raspberry Pi Camera Module v2 is a high quality 8 megapixel camera based around the Sony IMX219 image sensor – allowing you to create HD video and still photographs. It is a custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It’s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video. It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSi interface, designed especially for interfacing to cameras.
- Fixed focus lens on-board
- Improved resolution – 8 megapixel native resolution sensor-capable of 3280 x 2464 pixel static images
- Supports 1080p30, 720p60 and 640x480p90 video
- Size 25mm x 23mm x 9mm
- Weight just over 3g
- Connects to the Raspberry Pi board via a short ribbon cable (supplied)
- Camera v2 is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system
- Uses the Sony IMX219PQ image sensor – high-speed video imaging and high sensitivity
- 1.4 µm X 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise)
- Optical size of 1/4″
- Works with any version of the Raspberry Pi or compute module
With a tiny size at around 25mm x 23mm x 9mm and a weight of just over 3g it makes it the perfect accessories for mobile or other applications where size and weight are important. The Raspberry Pi Camera Module offers reduced image contamination such as fixed pattern noise & smearing. It also features automatic control functions such as exposure control, white balance and luminance detection.
Connecting the Camera Module to your Pi:
A 15 cm ribbon cable (included) attached to the module slots straight into your Pi Camera Serial Interface port (CSI). Once connected, you can access the camera board via the Multi-Media Abstraction Layer (MMAL) or the Video for Linux (V4L) APIs. Alternatively there are libraries such as Picamera Python, and many others that you can find online.
Product applications:
- CCTV security camera
- Motion detection
- Time lapse photography
- HD videos and still photography
- Slow-motion video
- Other applications include botanical, wildlife watching and home securit
