Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.
- Voltage: from 4,8 V to 6,0 V
- Movement range: from 0 ° to 180 °
- Type: analog
- Working temperature: from -20 ° C to 60 ° C
- Control signal: 1500 μs / 50 Hz
- Rotate clockwise:
1500 -> 2000 μs
- The maximum range of pulses: 800 - 2200 μs
- Cable length: ~150 mm
- JR connector
- Dimensions: 20,8 x 8,5 x 24,0 m
- Weight: 8 g
- 4,8 V parameters:
- Torque: 1,0 kg*cm (0,09 Nm)
- Speed: 0,11 s/60°
- Power consumption in standby mode 4 mA
- Power consumption without load: 120 mA
- Maximum current consumption: 390 mA
- 6,0 V parameters:
- Torque: 1,3 kg*cm (0,12 Nm
- Speed: 0,08 s/60°
- Power consumption in standby mode 5 mA
- Power consumption without load: 140 mA
- Maximum current consumption: 460 mA

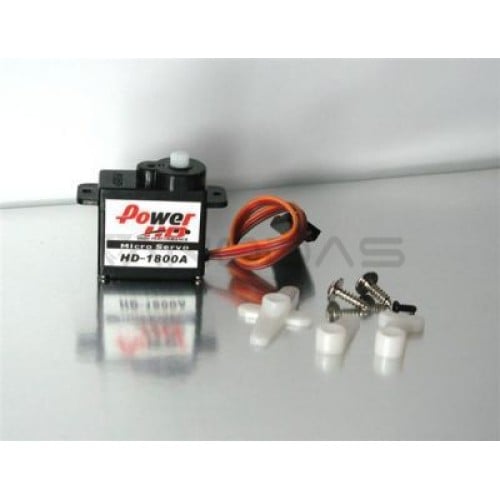

- The kit includes servo horn set, spacers and screws.
