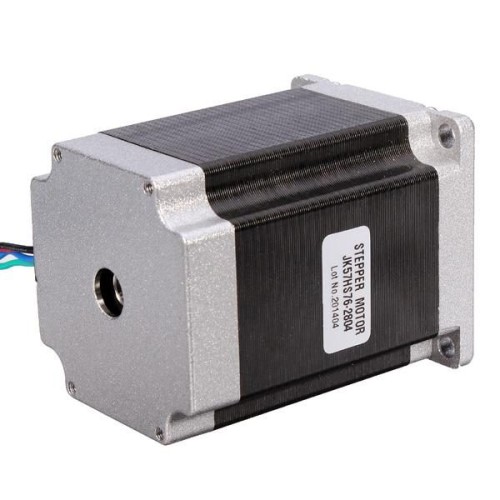

Stepper motor JK57HS76-2804 200 steps / rev 2V / 2.8A / 1.9Nm

Product Code: AN0742
EAN: 4772164008852
Availability: Vilnius Store In Stock
Kaunas Store In Stock
31.50€
Ex Tax: 26.03€

Qty

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed

Technical data:

  • Nominal voltage: 2V
  • 200speed / rev (1.8 °)
  • Winding resistance: 1.13 Ω
  • Inductance: 3.6 mH
  • Torque 1.89 Nm
  • Shaft diameter: 6.35 mm
  • Weight: 1.1kg
  • Standard: NEMA 23
  • Dimensions: 56.4 x 56.4 x 76 mm
