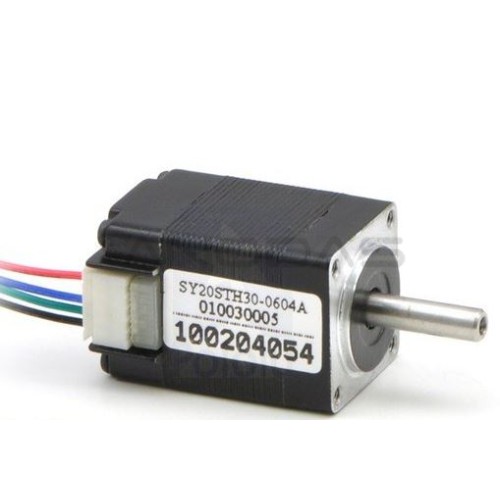

Stepper motor SY20STH30-0604A 200 steps / rev 3.9V/ 0.6A/ 0.017Nm

Product Code: PLL-01298
Availability: 3-5 business days
Planned delivery date after ordering: 2020-09-24
31.30€
Ex Tax: 25.87€

Qty

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.

Specification:

  • Steps per revolution: 200 (1,8 °)
  • Voltage rating: 3,9 V
  • Current rating: 600 mA
  • Resistance: 6,5 Ω per coil
  • Inductance: 1,7 mH
  • Torque: 0,18 kg*cm (0,017 Nm)
  • Bipolar (4 wires)
  • Shaft diameter: 4 mm
  • Weight: 60 g
  • Standard: NEMA 8
  • Size: 20 x 20 x 30 mm

Stepper motors are used in:

  • 3D printer
  • CNC machines
  • Laser cutters
  • Manipulators
