TB9051FTG, 2-channel motor driver 28V/2.6A, Shield for Arduino, Pololu 2520

Brand: Pololu
Product Code: AN-12435
Availability: Temporarily Out Of Stock
23.00€
Ex Tax: 19.01€

Module with dual-driver of motors TB9051FTG working with voltages from 4.5 V to 28 V and current up to 2.6 A per channel (max. 5 A). The system can be connected directly with the Arduino connectors. The module for self-assembly.

Main features:

  • Automatic current limit which helps to avoid overheating and shutdown
  • The output voltage, which enables to check the current consumption (500 mV/A, works when the bridge H is active)
  • LEDs signaling the motor's work

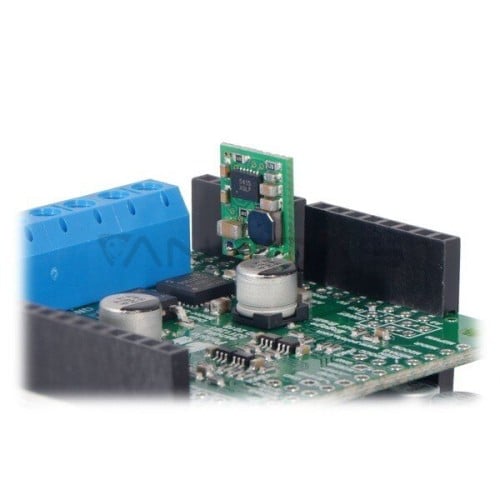

  • The module can provide power directly to the Arduino or through an additional module, for example, the converter D24V10F5
  • The mapping of pins can be changed if the default is not needed
  • The second access to most of the pins via the pins on the left side of the module

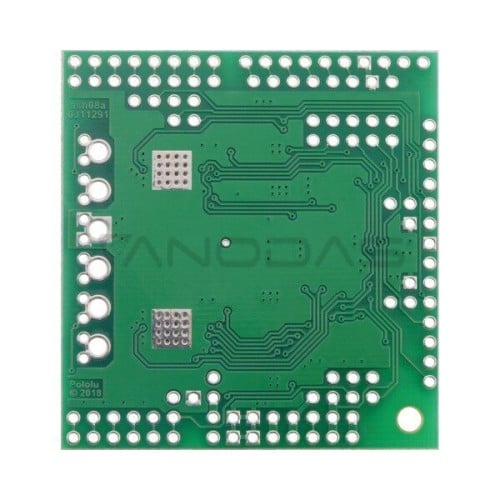

  • Open soldering point for each driver in the bottom of the BOARD
  • Protection against reverse polarity

Specification:

  • Supply voltage: 4.5 V to 28 V
  • Continuous output current per channel: 2.6 A
  • The maximum short-term current per channel: 5 A
  • PWM frequency: up to 20 kHz
  • Protection from incorrect power supply attachment
  • Designed for Arduino connectors
  • The possibility to power Raspberry using an optional controller (not included)
  • The Arduino library for easier maintenance of the module

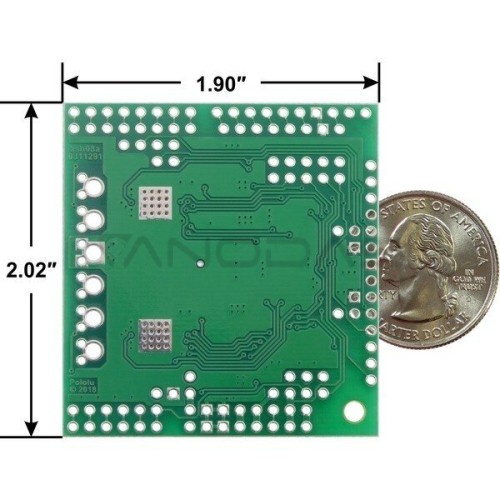

  • Dimensions: 51 x 48 mm
  • Weight: 11 g (without connectors)

Useful links:
Manufacturer website
