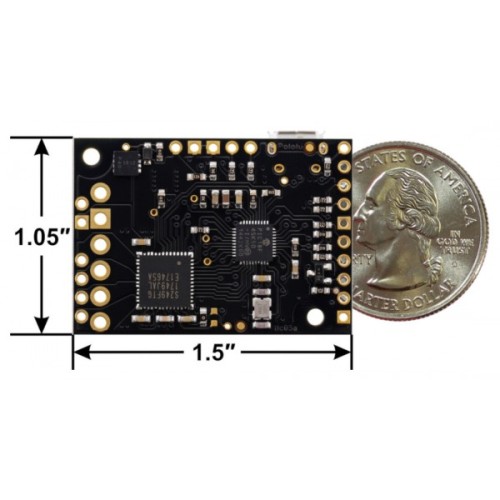

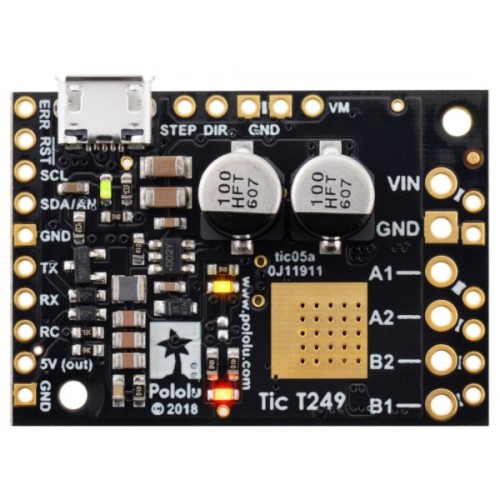

USB stepper motor driver Pololu 3139 47V/5.4A

Brand: OEM
Product Code: AN-13821
Availability: Temporarily Out Of Stock

53.60€
Ex Tax: 44.30€

Qty

The system allows you to control a stepper motor using a device that allows you to generate the logical state, e.g., Arduino, STM32Discovoery, Raspberry Pi or any microcontroller. The driver is to configure, test and monitor via USB, runs on operating systems Windows, Linux, and macOS. The Pololu module is characterized by a very simple operation. To rotate the motor one step, you must specify the STEP output high (logical unit), another sequence of zeros and ones moves the motor one step, etc. the Choice of direction is accomplished by depositing as the output DIR (e.g., low - speed clockwise, as high - on the contrary). The driver also has the choice of resolution of operation of the engine. To control a stepper motor bipolarnym it is necessary to connect the system in accordance with the following figure. If the nominal voltage of the motor is lower than required power supply driver (10 V), manually with the potentiometer to set the current limit.

Technical data:

The motor supply voltage: 10 V - 47 V
Current: max 1.8 A per coil (when using cooling to 4.5 A)
Voltage digital logic supply: 5 V regulator - no external power supply needed
The simple control interface
Work in 6 different modes: full step, 1/2, 1/4, 1/8, 1/16 and 1/32 step
The ability to adjust the current consumed by the motor with a potentiometer
Protection against too high current motor
Automatic switching between modes based on the current consumption through the engine
Overheat protection system
Has 6 management Interfaces: USB, TTL serial, I2C, Servo pulse RC, analog, sensor square
The maximum speed step: 50000 steps per second
A kit for self-Assembly

Included:

Driver module stepper motor TB67S249FTG
Strap goldpin
Screw
