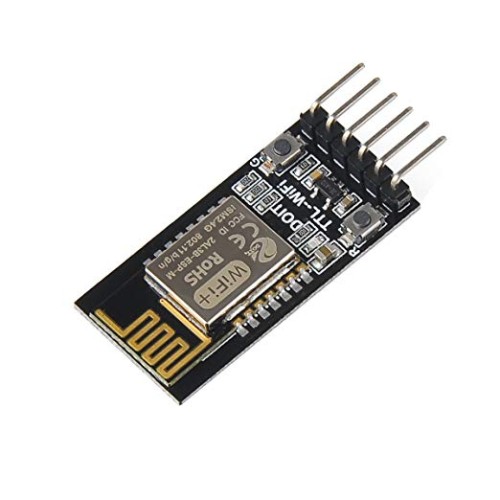

ESP8285 DT-06 Wifi į TTL modulis

Prekės kodas: AS0537
Prieinamumas: Turime parduotuvėje Vilniuje
Be mokesčių: 8.10€


Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth;
Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration;
Built-in the high performance WiFi module ESP-M2 with size: 34mm*17mm*4mm;
Working voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V);
Provided pins: STATE, TXD, RXD,EN;
Average current: 80mA; when data sent, it is 170mA; but it is 20μA at deep sleep mode;
Support serial AT command;
Support re-programmable, OTA firmware update;
Seamless transparent transmission between serial and WiFi;
Built-in HTTP Web Server, support configure parameters by web page;
Support re-connect automatically at WiFi STA mode and TCP Client;
Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time;
Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400;
Support AP enable, self-defined SSID/password, self-defined IP and network duration;
Automatically scan the peripheral WiFi hotspot, support STA enable,DHCP, self-defined IP;
Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast;
Support DNS resolution automatically for the remote sever address;
Support checking the status by AT command;
Provide IO4 to show the WiFi status;
Working temperature: -40℃-125℃;
Applications: smart home, wireless data connection and transparent transmission, smart car control, wireless serial printer, LED light industrial control etc.
