GPS Navigacijos Modulis VK-162 Su USB

Prekės kodas: AN0664
EAN: 4779044512232
Prieinamumas: Turime parduotuvėje Vilniuje
17.91€ 19.90€
Be mokesčių: 14.80€

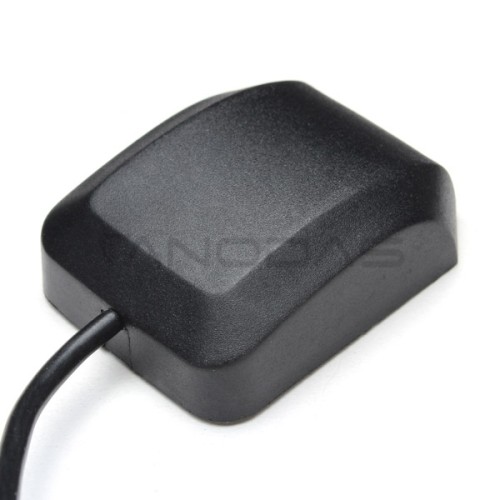

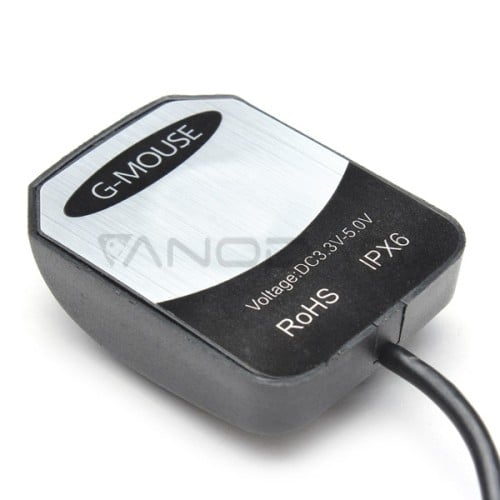

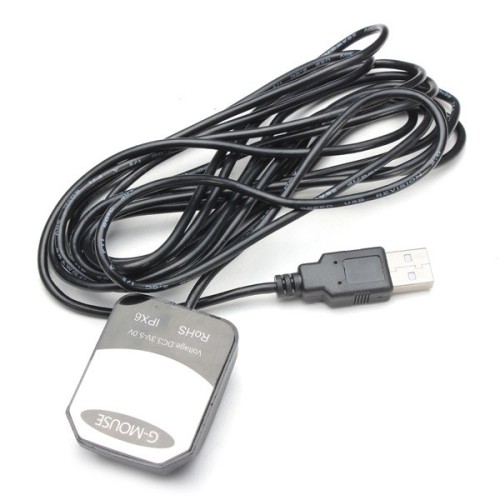

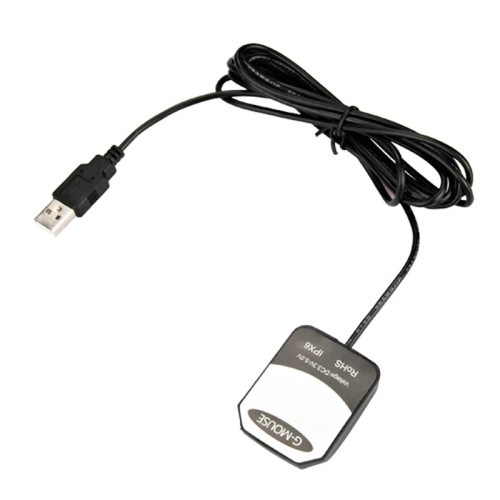

VK-162, is a complete GPS receiver. Built-in satellite receiver antenna, satellite receiver core using the most advanced core UBLOX positioned to provide highly accurate positioning information, it is also able to meet the stringent requirements of industrial positioning and personal use as needed. Scope from the car navigation, security systems, map making and survey to agricultural uses. Built-in button-type battery for storing satellite data such as satellite signal status, location and time of the last previously used to increase the positioning speed boot time. Built-in WAAS / EGNOS demodulator without additional hardware can receive WAAS / EGNOS signals. Support NMEA0183 3.01 version of the output data format. Supports Google Earth.


Wide voltage range: the main power supply is +3.3 V ~ +5V

Operating temperature: - 40℃ to + 85 ℃

C/A code, 1.023 MHz band receiving stream: L1 [575.42MHz]

Receiver Channel: 56CH

Positioning performance <2.5m [Autonomous] [50%] <2 m [SBAS]

Rate: <0.1m/s

Direction: <0.5 Degrees

Timing accuracy: 30ns

Reference coordinate system: WGS-84

The maximum height of altitude: 50,000 m

Maximum speed: 500 m/s

Acceleration: <4g
