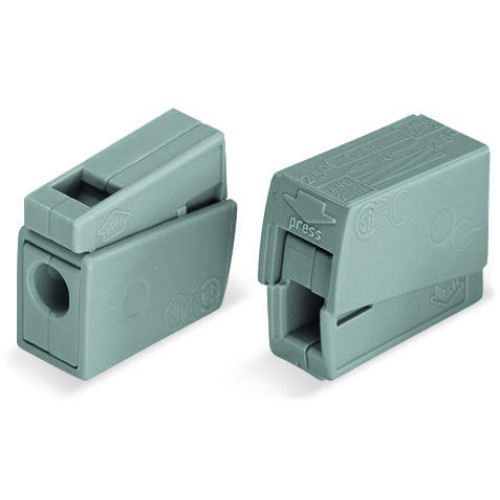

Jungtis šviestuvams 1x1.0-2.5mm² WAGO

Gamintojas: WAGO
Prekės kodas: 224-101
EAN: 4044918583817
Prieinamumas: Turime parduotuvėje Vilniuje
0.25€
Be mokesčių: 0.21€

Kiekis

  • Ratings per IEC/EN 60664-1
    Rated voltage (II / 2)400 V
    Rated impulse voltage (II / 2)4 kV
    Rated current24 A

    Connection data

    Connection type (1)Installation side:
    Connection technologyPUSH WIRE®
    Actuation typePush-in
    Connectable conductor materialsCopper
    Aluminum
    Solid conductor1 … 2.5 mm² / 14 … 12 AWG
    Strip length9 … 11 mm / 0.35 … 0.43 inch
    Connection type (2)Lighting side:
    Connection technology 2CAGE CLAMP®
    Number of connection points1
    Solid conductor (2)0.5 … 2.5 mm² / 20 … 16 AWG
    Total number of connection points2
    Total number of potentials1
    Type of wiringSide-entry wiring
    Fine-stranded conductor (2)0.5 … 2.5 mm² / 20 … 16 AWG
    More

    Geometrical Data

    Width8 mm / 0.315 inch
    Height15.5 mm / 0.61 inch
    Depth20.4 mm / 0.803 inch

    Material Data

    Colorgray
    Fire load0.041 MJ
    Weight2.128 g

    Environmental Requirements

    Continuous operating temperature105 °C
