Stepper Motor Driver TB6560 - 35V/3A

Product Code: AN0148
EAN: 4779044515912
Availability: Vilnius Store Out of Stock
Kaunas Store In Stock
10.50€
Ex Tax: 8.68€

Qty

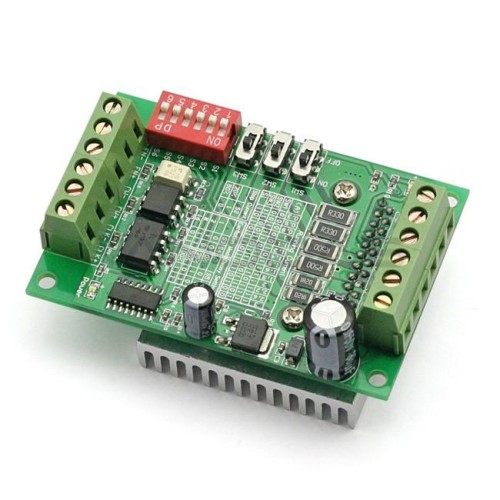

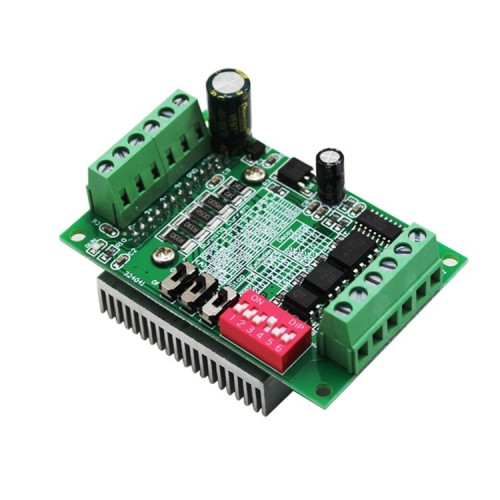

The TB6560 is a powerful stepper motor controller module suitable for Arduino. It can supply up to 3.5A of current and operate in 1/16 micro-step mode, making its operation particularly quiet and stable. DIP switches are used to regulate the supply current and microsteps, optocouples for high frequency noise elimination, excessive temperature and current protection.

Technical specs and features:
  • Dimensions: 75 x 50 x 35 mm
  • Adjustable current supplied to motors: up to 3 A (pulses up to 3.5 A)
  • Supply voltage: 10 - 35V DC. It is recommended to use a DC 24 V power supply
  • Supported microsteps: 1, 1/2, 1/4, 1/8, 1/16. For quiet operation, the manufacturer recommends 1/16 step modes
  • Built-in 6N137 optocouple high frequency noise protection prevents the motor from skipping even at high speeds
  • Excessive temperature and current protection installed
  • Low voltage protection installed
  • Suitable for 2, 4 phase and 6 wire stepper motors
  • Large radiator for good cooling

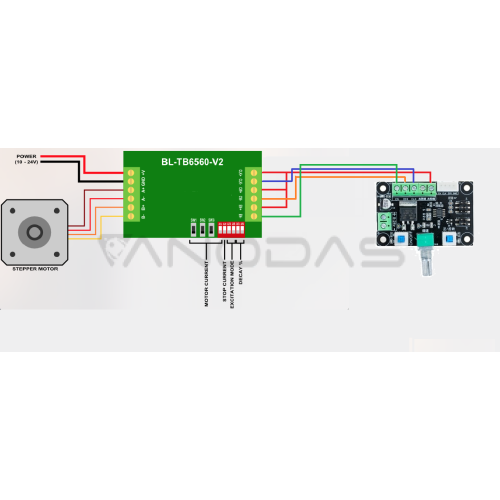

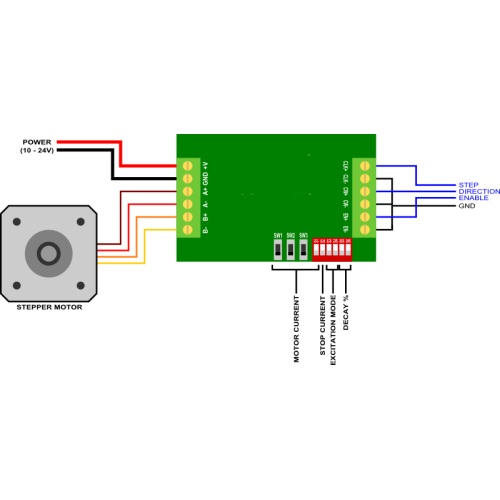

  • Simple direction and step control with just 2 signal connections.
  • DIP switches regulate the supply current and microsteps
  • Controller chip: Toshiba TB6560AHQ
Applications and external links:
  • Precise control of robotic limbs
