Programatorius ir debugeris Xilinx įrenginiams

Prekės kodas: AN0142
EAN: 4779044514694
Prieinamumas: Turime parduotuvėje Vilniuje
47.50€
Be mokesčių: 39.26€

Kiekis

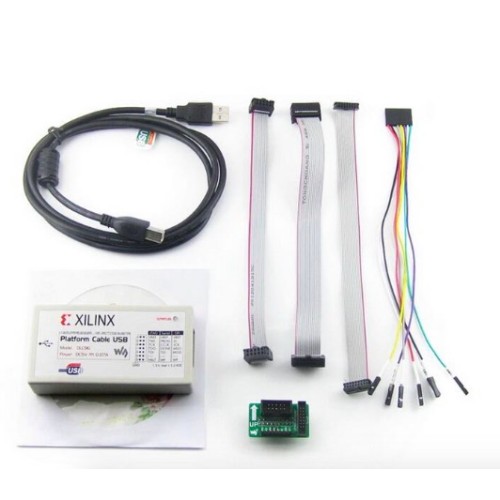

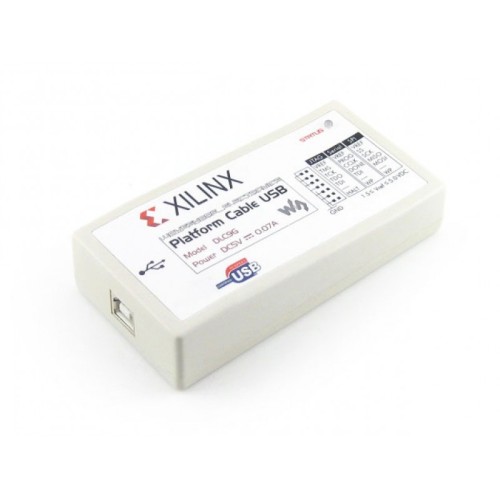

The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.


Key Features

  • Performance
    • Using CY7C68013A+XC2C256 solution, fully compatible with the original XILINX Platform Cable USB
    • Supports all Xilinx devices, FPGA configuration and PROM/CPLD programming
    • Supports JTAG, Slave-Serial and SPI
    • Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
    • Selectable target clock frequency, supports software automatic frequency adjustment
  • Supported Software
    • Xilinx ISE
    • iMPACT
    • ChipScope
  • Supported Devices
    • All Xilinx devices, FPGA configuration and PROM/CPLD programming
  • Connects to PC
    • Computer connection via USB interface
  • Connects to target board
    • Target board connection via JTAG, Slave Serial, SPI interfaces. The figure below shows the header pinouts of different interfaces:JTAG, Slave Serial, SPI header pinout

LED Status

  • Red and Purple: USB connected
  • Purple: USB connected, and Vref (the target board) is powered
