CNC xPRO V4 Žingsninių variklių kontroleris

Prekės kodas: HW1366EC
Prieinamumas: Laikinai Neturime
Be mokesčių: 159.34€


The xPRO V4 Controller Stepper Driver its an all in one controller with all the necessary features to get you up and running in your build quickly and reliably

Product Features

Introduced with the V4 is our new DriverMinder logic - the V4 constantly monitors the status of each motor driver looking for any fault. Should a fault occur, your selected action will be taken, options are:
Pause - will initiate a system pause allowing you to safely troubleshoot and potentially save your work piece
Stop - emergency abort, system stop immediately and reboots
Play - continue on as if nothing happened (AKA ignore fault).

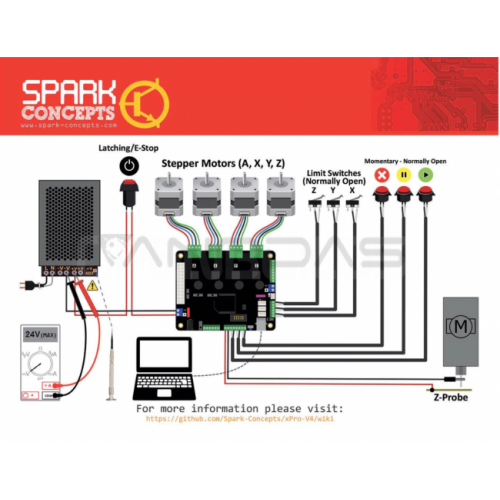

Less than 5-minute install with the use of plug and play motors headers, limit switches and power supplies

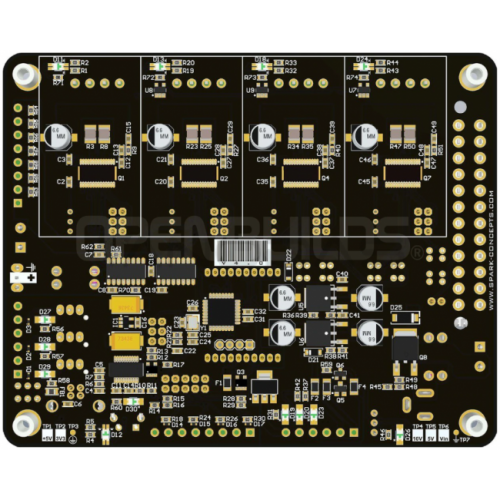

4-layer design featuring completely isolated motor and logic power buses
All smd parts moved to back of board to protect again debris and short
Integrated #4-40 standoff for easy mounting and short protection
Three ways to power - Laptop PSU (2.5x5.5mm plug), a 2 wire power supply, or ATX computer power supply
Selectable spindle output voltage range: 0-5V or 0-10V for full compatibility with spindles, VFDs, Lasers and more
Coolant output is now an open drain (directly sink up to 3A or use to control external relays)
Screw terminal hookup for external Step/Dir drivers makes beefing up easy
Extremely robust power management for overvoltage/reverse voltage protection including replaceable mini blade fuses
Motor driver step and fault LEDs for easier troubleshooting
Enhanced silkscreen with more pictures and less labels
Compatible with Openbuilds Xtension wiring system for even easier setup!
DIP SWITCHES = NO MORE SOLDER JUMPERS - want to change decay mode -> slide the switch, want to clone Z motion instead of Y -> slide the switch

What is Included

(1) CNC xPRO V4 Controller Stepper Driver

Product Specifications

Pre-loaded with latest stable version of GRBL
Capable of powering from ATX PSU, edicated 12V/24V two wire power supply, or a laptop power supply
Drive 4 motors with DRV8825 Stepper Drivers - 2.5A (peak) with 1.75A (RMS) with up to 1/32 microstepping
1 Driver capable of cloning X,Y, or Z
Hardware support for both USB and Wireless Operation (XBee, WiFly, or Bluelink)*
Emergency Stop to cut all motor power (with optional override)
12V and 5V** outputs for powering peripherals (fans, pumps, vacuums)
Quickly connect to Stepper Motors and limit switches with 3.5mm screw terminals and/or 4-pin 0.1" (2.54mm) headers
Expansion port for coming upgrades (Illuminated button pendant, jog control, and headless sender)
