LV8729 žingsninių variklių valdiklis

Prekės kodas: AS1566
Prieinamumas: Turime parduotuvėje Vilniuje
7.80€
Be mokesčių: 6.45€

Kiekis

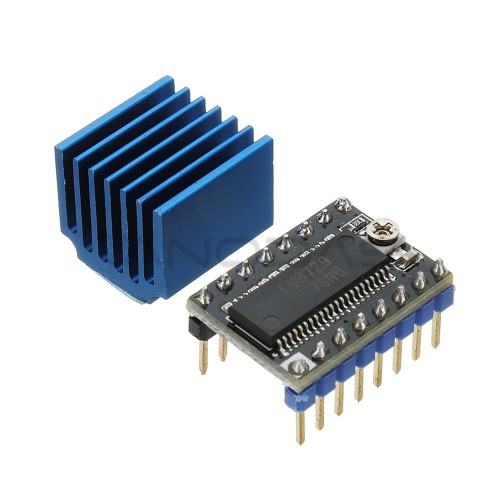

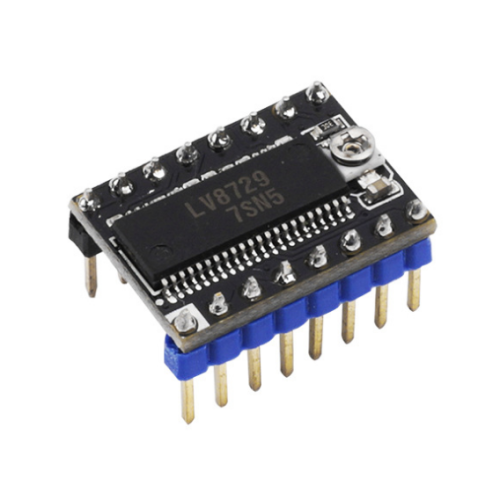

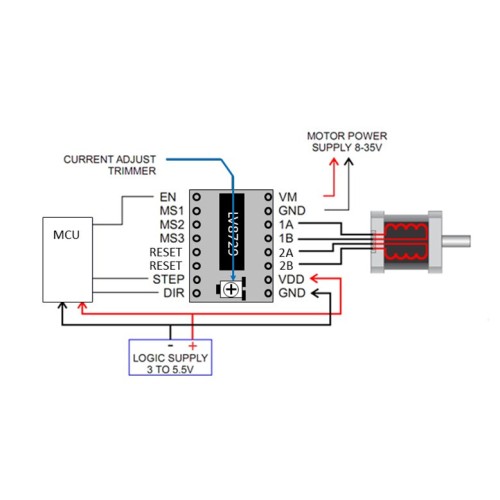

LV8729 driver module with 128 subdivisions is a good choice for Nema stepper motor whose current is less than 1.5A, which makes motor steady, quiet and precise.


Specifications:

Dimensions: 15mm * 20mm (Same with the A4988 and DRV8825)

Maximum drive current: 2A (Default 1.2A)

Operating voltage: 6V-36V, the proposed voltage is 12V

Support subdivisions: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128

Product Process: four layer PCB board

In the 64 subdivision or 128 subdivision to have a better ultra-quiet effect.

Note: Please make sure the connecting direction is right, or it will probably burn the driver chip and controller board. Recommend to do a good job of cooling for the module.


Driver current algorithm and its adjustment:

1. Driver current algorithm: i=Vref*0.9, the default Vref about 0.4V, so the default current 1.2A, and maximum current 2A

2. Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.

3. Please connect both the power supply and the USB for power when measuring the voltage.

4. Minor adjustment for potentiometer driver. Adjust it again after measurement to avoid burning driver by excessive current.

5. To increase the current by rotating the potentiometer clockwise slowly, and anticlockwise to reduce.
