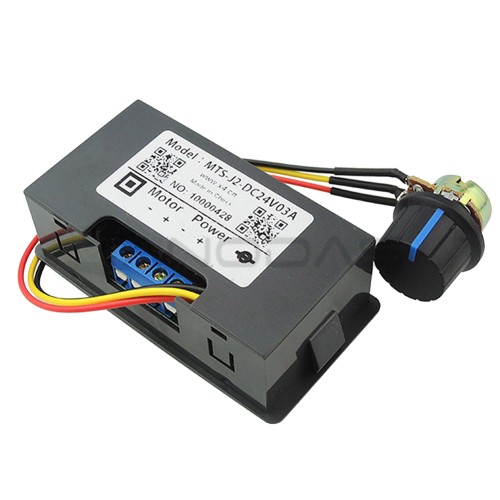

CCM5D DC variklio reguliatorius PWM 6-30VDC 5A su ekranu

Prekės kodas: AS0647
Prieinamumas: Turime parduotuvėje Vilniuje
7.80€
Be mokesčių: 6.45€

Kiekis

Specification:
Type: PWM DC Motor Controller
Color : black
Size : about 79*42*25mm/3.11*1.65*0.98''
Net weight: about 58g
Input supply voltage: 6V-30VDC
The maximum output power: 240W
The maximum continuous output current: 5A;(Crest value current 8A),

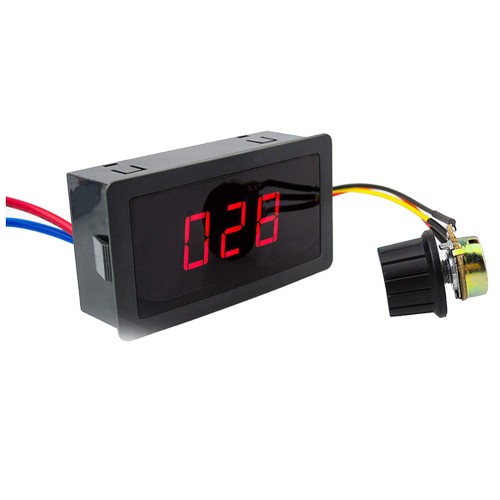

The LED display the duty ratio 0-100%
PWM frequency: 16kHz
Duty Cycle adjustable: 0%-100%

Operating instruction:
Before you attempting to wire the controller, make sure power is off.
1. Connect wires refer to the ''wiring diagram'' .
2. Turn on the power, and adjust the potentiometer.
3. The LED display displays the PWM output duty cycle.


Warning:
1. Do not Reverse positive and negative power loads.
2. This will damage the controller to change motor decription.
3. Interchange the positive and negative wires of motors.
