Lietimui jautraus jungiklio modulis TTP223B

Prekės kodas: AN-01903
Prieinamumas: Prekių pristatymas 3-5 d.d.
Planuojama gavimo data po užsakymo: 2019-11-28
5.50€
Be mokesčių: 4.55€

Kiekis

•  The module is based on a touch-sensing IC  (TTP223B) capacitive touch switch module. In the normal state, the module output  low, low power consumption; When a finger touches the corresponding position,  the module output high, if not touched for 12 seconds, switch to low-power mode.

•  Jog type : the initial state is low , high  touch , do not touch is low ( similar touch of a button feature )

•  Module can be installed in such as surface  plastic, glass of non-metallic materials

•  In addition to the thin paper ( non-metallic )  covering the surface of the module , as long as the correct location of the  touch , you can make hidden in the walls, desktops and other parts of buttons

Features:

•  Low power consumption

•  Power supply for 2 ~ 5.5V DC

•  Can replace the traditional touch of a button

•  Four M2 screws positioning holes for easy  installation

•  Specification:

•  Item

•  Min

•  Typical

•  Max

•  Unit

•  Power supply voltage VCC

•  2.0

•  3

•  5.5

•  V

•  Output high VOH

•  -

•  0.8VCC

•  -

•  V

•  Output low VOL

•  -

•  -

•  0.3VCC

•  V

•  Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V)

•  -

•  8

•  -

•  mA

•  Output pin pull-up current (@ VCC = 3V, VOH = 2.4V)

•  -

•  4

•  -

•  mA

•  Response time (low power mode)

•  -

•  -

•  220

•  mS

•  Response time (touch mode)

•  -

•  -

•  60

•  mS

•  Size

•  24x24x7.2

•  mm

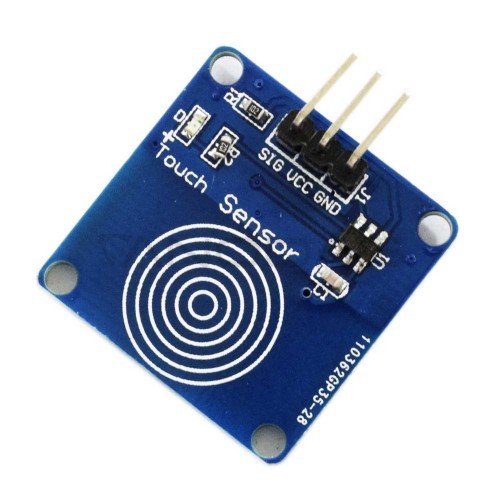

•  Touch Sensor Interface :(the last picture show)
-Control Interface : A total of three pins (GND,  VCC, SIG), GND to ground , VCC is the power supply , SIG digital signal output  pin ;

-Power Indicator : Green LED, power on the right that is shiny ;

-Touch area : Similar to a fingerprint icon inside the area , you can touch the  trigger finger .

-Positioning holes : 4 M2 screws positioning hole diameter is 2.2mm, the  positioning of the module is easy to install , to achieve inter- module  combination ;
